OM Pimespo E8N and E10N (4033 series) Electric Forklift Truck set of Service Manuals download

All-Inclusive Factory Service Technical manual for OM Pimespo Electric Forklift Trucks Models E8N and E10N (4033 series).

This manuals will assist you in diagnosing, repairing, operating, maintaining, and finding spare parts for your electric forklift truck.
You can use a Windows, Mac, or Android device to view this manuals. You only need to have a PDF reader installed.

Covered Models:
   E8N (4033 series)
   E10N (4033 series)

The manual comprises 5 documents, including the Workshop Manual, two Operate and Maintenance manuals, and two Parts Catalogs

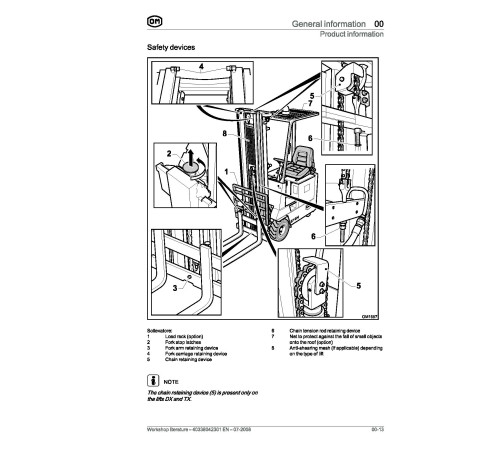

1. Workshop Manual (33_1_1771_1_en)
Format: PDF, 172 pages
Language: English

2. Operate and Maintenance manual (40338042501_042008_EN)
Format: PDF, 110 pages
Language: English
Table of Contents:
   Summary Data for Technical Assistance
   Introduction
      General Information
      Normative References
       Areas with risk of explosion and handling of explosive loads.
      Type of use and contraindications for use
      Use Limitations
      Driving on public roads
      General Forklift Description
      Equipment Assembly
      Modifications to Forklift
      Forklift Delivery
   Safety
      Safety Regulations
      Flooring requirements
      Safety Regulations Relative to Forklift Use
      Safety Regulations Relative to Operating Materials
      Safety regulations during tyre inflation
      Placement of data plates and labels
      Description of data plates and labels
      Safety devices
      Noise
      Electromagnetic Compliance
      Vibrations
   Knowledge of the Truck
      General forklift view
      Instrumentation and Controls
      Internal parts
      Forklift identification
   Use and Operation
      Truck Transport and Lifting
      Commissioning
      Breaking-In
      Daily checks before use
      Use of the Truck
      Load Placement
      Towing trailers
      Towing the truck
      Battery recharging
      General Information
      Operations Preliminary to Maintenance
   Servicing
      Maintenance as required
      Scheduled Maintenance
      EVERY 500 HOURS
      Decommissioning
      Overall dimensions
      Technical data
      Alternative lift characteristics
      Fork lift truck capacities - Model E8N - Masts vertical with fork arms = 1400 mm max.
      Fork lift truck capacities - Model E10N - Masts vertical with fork arms = 1400 mm max.
      Tyre characteristics
      Pneumatic tyre inflation pressure
      Battery dimensions and weights
      Lamps
   Annex
      Electrical connection diagram - Sheet 1/1
      Hydraulic circuit diagram - Sheet 1/1

3. Operate and Maintenance manual (33_5_1928_1_en)
Format: PDF, 112 pages
Language: English

4. Parts Catalog (394_1552586581593_en)
Format: PDF, 257 pages
Language: English
Table of Contents:
   4033 - E8-10N (2009-07)
      CHASSIS
         CONNECTION PARTS
         ACCELERATOR PEDAL, COMPL.
         Einzelreifen
         TWIN PNEUMATIC WHEELS
         SINGLE SUPERELASTIC WHEELS (E8N)
         SINGLE SUPERELASTIC WHEELS
         TWIN SUPERELASTIC WHEELS
         CHASSIS
         COUNTERWEIGHT
         REAR AXLE
         REAR AXLE
         HYDRAULIC SYSTEM - HYDRAULIC STEERING
         STEERING CONTROL
         HANDBRAKE CONTROL
         BREMSPEDAL
         PUMP MOTOR
         ELECTRIC MOTORS
         ELECTRIC INSTRUMENTS
         ELECTRONIC PANEL
         WIRING
         CABLES.
         OIL TANK
         oil filter
         HYDRAULIC HOSING - 1
         HYDRAULIC HOSING - 2
         HYDRAULIC HOSING - 3
         3-ELEMENT DISTRIBUTOR
         3-ELEMENT DISTRIBUTOR
         HOOD
         DRIVER
         DRIVER
         FOOTBOARDS
         OVERHEAD GUARD
         STICKER
         LABEL
         CATALOG
      HUBVORRICHTUNG
         SIMPLEX MAST
         SIMPLEX FORK CARRIAGE
         LIFTING CYLINDER SIMPLEX
         SIMPLEX S.L.I. FORK CARRIAGE (SIMPLEX)
         LEFT ADDITIONAL HYDRAULIC SYSTEM (SIMPLEX)
         ADDITIONAL HYDR. SYSTEM W/SLI (SIMPLEX)
         RIGHT ADDITIONAL HYDRAULIC SYSTEM (SIMPLEX)
         LEFT ADDITIONAL HYDRAULIC SYSTEM (SIMPLEX)
         SHIELD GRILLE (SIMPEX) (mast height: 2900 mm)
         DUPLEX MAST
         FORK HOLDER PLATE - DUPLEX
         DUPLEX LATERAL CYLINDERS
         CENTRAL CYLINDER DUPLEX
         DUPLEX S.L.I. 6-ROLLER FORK CARRIAGE
         DUPLEX S.L.I. HYDRAULIC SYSTEM
         LEFT ADDITIONAL HYDRAULIC SYSTEM WITH ISS (DUPLEX)
         RIGHT ADDITIONAL HYDRAULIC SYSTEM (DUPLEX)
         LEFT ADDITIONAL HYDRAULIC SYSTEM (DUPLEX)
         SHIELD GRILLE (DUPLEX) (Mast weight: 2900-3600 mm)
         TRIPLEX MAST
         FORK HOLDER PLATE - TRIPLEX
         CENTRAL CYLINDER TRIPLEX
         TRIPLEX RIGHT LATERAL CYLINDER
         TRIPLEX LEFT LATERAL CYLINDER
         MAST HYDRAULIC SYSTEM - TRIPLEX
         TRIPLEX S.L.I. 6-ROLLER FORK CARRIAGE
         TRIPLEX S.L.I. HYDRAULIC SYSTEM
         LEFT ADDITIONAL HYDRAULIC SYSTEM WITH ISS (TRIPLEX)
         RIGHT ADDITIONAL HYDRAULIC SYSTEM (TRIPLEX)
         LEFT ADDITIONAL HYDRAULIC SYSTEM (TRIPLEX)
         SHIELD GRILLE (TRIPLEX) (Mast height: 4300-4700 mm)
         SHIELD GRILLE (TRIPLEX) (Mast height: 5000-5600 mm)
      TRANSMISSION
         TRANSMISSION
         RIGHT GEARMOTOR
         LEFT GEARMOTOR
         DRIVE MOTOR
         BRAKE
      options
         TRIPLE WORK LIGHTS
         REAR VIEW MIRROR
         ROTATING LIGHT CONTAINER
         THREE ELEMENTS DISTRIBUTOR LEVER LOCK
         FOUR ELEMENTS DISTRIBUTOR LEVER LOCK
         LOAD PROTECTION
         ACCELERATOR PEDAL, COMPL.
         DIRECTION INVERTER
         ANTISTATIC SUPERELASTIC WHEELS
         TWIN ANTISTATIC SUPERELASTIC WHEELS
         WHITE SUPERELASTIC WHEELS (E8N)
         WHITE SUPERELASTIC WHEELS (E10N)
         LIGHT SYSTEM
         EXTERNAL ROTATING LIGHT
         TWING WORK LIGHTS
         LOWERED ROOF
         ROAD HOMOLOGATION
         REAR VIEW MIRROR
         oil filter
         UPPER GUARD
         4-ELEMENT DISTIBUTOR
         4-ELEMENT DISTIBUTOR
         TILLER
   index parts

5. Parts Catalog (393_1552586393812_en)
Format: PDF, 280 pages
Language: English
Table of Contents:
   4033 - E8-10N
      PRODUCT INFORMATION
      ELECTRIC MOTOR
      TRANSMISSION
      CHASSIS
      DRIVERS PLACE
      STEERING SYSTEM
      WHEELS AND TYRES
      HANDBRAKE CONTROL
      OPERATING ELEMENTS
      ELECTRICAL SYSTEM
      HYDRAULIC SYSTEM
      VALVES
      INITIAL LIFTING GEAR
      LIFT FRAME
      FORK PLATE
      SPECIAL EQUIPMENT NARROW AISLE TRUCKS
      OTHER ACCESSORIES
   index parts
