Mitsubishi FD40N, FD45N, FD50CN, FD50N and FD55N Diesel Forklift Truck set of Service Manuals download

Set of Factory Service Technical manuals for Mitsubishi Diesel Forklift Trucks Models FD40N (AF12D-00011-19999), FD45N (AF19F-50011-79999), FD50CN (AF19F-80011-99999), FD50N (AF28E-50011-79999) and FD55N (AF28E-80011-99999).

This manuals will assist you in determining a malfunction using a fault code, diagnosing, analyses, testing, repair, repairing engine, troubleshooting, and finding spare parts for your diesel forklift truck.
You can use a Windows, Mac, or Android device to view this manuals. You only need to have a PDF reader installed.

Covered Models:
   FD40N (AF12D-00011-19999)
   FD45N (AF19F-50011-79999)
   FD50CN (AF19F-80011-99999)
   FD50N (AF28E-50011-79999)
   FD55N (AF28E-80011-99999)

The manual comprises 6 documents, including the Fault Codes List, Service Manual, Engine Technical Manual, two Wiring Diagrams, and Parts Catalog

1. Fault Codes List (REF-18-0008M_69904)
Format: PDF, 13 pages
Language: English

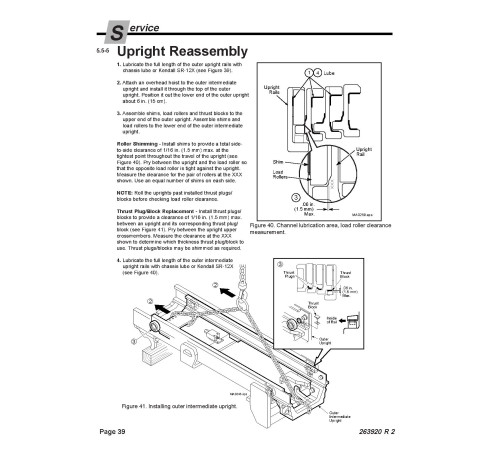

2. Service Manual: 35DV/45DV/55DV-MQ Mast (SM-LTI-263920-Mast)
Format: PDF, 48 pages
Language: English

3. Engine Technical Manual: D04EG-T Diesel Engine (EN-SMEEA-AF12D-220_D04EGT_0522)
Format: PDF, 230 pages
Language: English
Table of Contents:
   GENERAL
      External View
      Outline of Systems
      Engine Serial Number
      Specifications
   SERVICE DATA
      Maintenance Service Data
      Tightening Torque Table
   SERVICE TOOLS
      Special Tools
   DISASSEMBLY OF BASIC ENGINE
      Compression Pressure - Measure
      Cylinder Head and Valve Mechanism - Disassemble and Inspect
      Rear Mechanism - Disassemble and Inspect
      Front Mechanism - Disassemble and Inspect
      Piston, Connecting Rod, Crankshaft, and Crankcase - Disassemble and Inspect
   INSPECTION AND REPAIR OF BASIC ENGINE
      Cylinder Head and Valve Mechanism - Inspect and Repair
      Rear Mechanism - Inspect and Repair
      Front Mechanism - Inspect and Repair
      Piston and Connecting Rod - Inspect and Repair
      Crankcase and Crankshaft - Inspect and Repair
   ASSEMBLY OF BASIC ENGINE
      Piston, Connecting Rod, Crankshaft and Crankcase - Assemble
      Front Mechanism - Assemble
      Rear Mechanism - Assemble
      Cylinder Head and Valve Mechanism - Assemble
   FUEL SYSTEM
      Environmental Condition to Disassemble and Assemble the Fuel System
      Fuel System - Remove and Inspect
      Common Rail Assembly - Disassemble and Inspect
      Fuel System - Disassemble, Inspect, and Assemble
      High-pressure Pump - Inspect
      Fuel System - Install
      Injector Replacement - Working with Engine Scope
      Working with ENGINE SCOPE at the Time of Common Rail Replacement
   LUBRICATION SYSTEM
      Lubrication System - Remove and Inspect
      Lubrication System - Disassemble, Inspect, and Assemble
      Lubrication System - Install
   COOLING SYSTEM
      Cooling System - Remove and Inspect
      Cooling System - Inspect
      Cooling System - Install
   INLET AND EXHAUST SYSTEMS
      Inlet and Exhaust Systems - Remove and Inspect
      Inlet and Exhaust Systems - Disassemble, Inspect, and Assemble
      Inlet and Exhaust Systems - Install
   ELECTRICAL SYSTEM
      Electrical System - Remove
      Electrical System - Inspect
      Engine Control System - Inspection
      Various Sensors - Inspect
      Wiring - Check
   ADJUSTMENT AND OPERATION
      Engine - Adjust
      Diagnostic Code Cross-Reference Table
      Troubleshooting of Failure Diagnostic Code
      ENGINE SCOPE
   REVISION HISTORY

4. Wiring Diagram (EL-X0025376)
Format: PDF, 2 pages
Language: English

5. Wiring Diagram (EL-SMFEA-AF12D-220S)
Format: PDF, 41 pages
Language: English

6. Parts Catalog: Chassis, Mast and Option (PM-PMFEA-AF12D-22_0622)
Format: PDF, 658 pages
Language: English
