Mitsubishi FD20K, FD25K, FD30K and FD35K Diesel Forklift Truck (USA) set of Service Manuals download

Illustrated factory set of Service Manuals for Mitsubishi Diesel Forklift Trucks Models FD20K (AF18B-05001-up), FD25K (AF18B-05001-up), FD30K (AF14C-35001-up) and FD35K (AF14C-55001-up).

This manuals will assist you in determining a malfunction using a fault code, diagnosing, analyses, testing, repair, repairing engine, operating, maintaining, and troubleshooting for your diesel forklift truck.
You can use a Windows, Mac, or Android device to view this manuals. You only need to have a PDF reader installed.

Covered Models:
   FD20K (AF18B-05001-up)
   FD25K (AF18B-05001-up)
   FD30K (AF14C-35001-up)
   FD35K (AF14C-55001-up)

The manual comprises 6 documents, including the Fault Codes List, two Service Manuals, Engine Technical Manual, Operate and Maintenance manual, and Wiring Diagram

1. Fault Codes List (REF-18-0008M_69904)
Format: PDF, 13 pages
Language: English

2. Service Manual: Options Supplement (SMSUP-99719-91100)
Format: PDF, 44 pages
Language: English
Table of Contents:
   PLATE FIN TYPE RADIATOR KIT
   FAN SPEED UP KIT
   RADIATOR COOLANT LEVEL WARNING KIT
   TORQUE CONVERTER OIL FILTER KIT
   RADIATOR NET KIT
   COMBINATION LAMP AND TURN SIGNAL SWITCH KIT
   BACK BUZZER KIT
   WARNING LAMP KIT (Installed on top of guard)
   WARNING LAMP KIT (Installed on guard leg)
   BACK MIRROR KIT
   WORKING LAMP KIT
   DISCONNECT SWITCH KIT
   HOOK KIT
   ENCLOSED ALTERNATOR KIT (Gasoline model)
   ENCLOSED ALTERNATOR KIT (2-, 3-ton Diesel models)
   JOINT COVER KIT
   SPECIAL DUAL TIRE KIT (1-ton model)
   SPECIAL DUAL TIRE KIT (2-, 3-ton models)
   SPECIAL DUAL SOLID TIRE KIT (2-ton model)
   DOUBLE CYCLONE AIR CLEANER KIT
   DUST INDICATOR KIT
   CYCLONE MUFFLER KIT
   CATALYZER MUFFLER KIT
   DIFFUSION MUFFLER KIT
   GEAR PUMP SEAL KIT
   SUCTION FILTER KIT
   DUST PROOF BREATHER KIT

3. Service Manual (SM-99719-72130_05)
Format: PDF, 370 pages
Language: English
Table of Contents:
   GENERAL INFORMATION
      Vehicle exterior, Models, Serial number locations, Dimensions, Technical data
   COOLING SYSTEM
      Fan belt removal, Fan belt inspection, Fan belt adjustment
   ELECTRICAL SYSTEM
      Console box, Combination meter, Starter switch (with anti-restart lock), Lighting switch, Fuse box, Spare terminals, Battery maintenance, Light  bulb specifications, Electrical system schematics
   POWER TRAIN
      Engine and transmission
   POWERSHIFT TRANSMISSION
      Hydraulic circuit, Control, Transmission assembly, Pump assembly, Control valve, Testing hydraulic pressure, Adjusting inching pedal, Testing clutch valve, 10-m (33-ft) Start acceleration test
   FRONT AXLE AND REDUCTION DIFFERENTIAL
      Front wheels, Front axle and reduction differential, Tooth contact patterns and adjustment
   REAR AXLE
      Rear axle, Steering cylinder, Rear wheels, Rear axle, Steering cylinder, Minimum turning radius adjustment
   BRAKE SYSTEM
      Automatic adjusting device, Brake pedal and assembly, Master cylinder, Wheel brakes, Wheel cylinders, Brake pedal adjustment, Bleeding air out of the brake fluid line, Brake test
   STEERING SYSTEM
      Steering system, Steering control valve, Tilt steering assembly
   HYDRAULIC SYSTEM
      Hydraulic line, Hydraulic tank, Hydraulic pump, Control valve, Lift and tilt cylinders, Flow regulator valve, Down safety valve
   MAST AND FORKS
      Simplex mast, Duplex mast, Triplex mast
   LP-GAS SYSTEM
      Structure and function, Operating instructions, Troubleshooting
   SERVICE DATA
      Tightening torques for standard bolts and nuts, Periodic replacement parts, Fuel and lubricant specifications, Recommended brands of lubricants, Refill capacities (approximate)

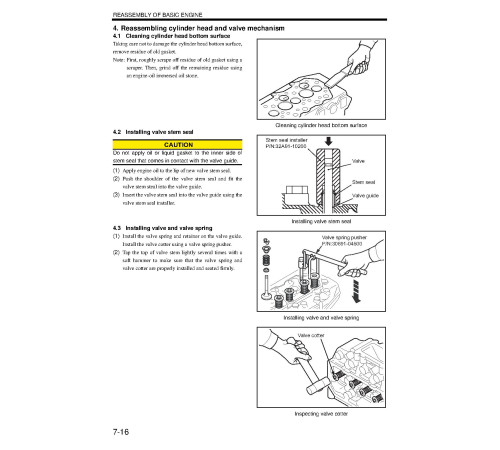

4. Engine Technical Manual: S4S Diesel Engine (EN-99729-77120_S4S)
Format: PDF, 182 pages
Language: English
Table of Contents:
   INTRODUCTION
   GENERAL CONTENTS
   GENERAL
   SERVICE DATA
   SERVICE TOOLS
   DETERMINATION OF OVERHAUL
   DISASSEMBLY OF BASIC ENGINE
   INSPECTION AND REPAIR OF BASIC ENGINE
   REASSEMBLY OF BASIC ENGINE
   FUEL SYSTEM
   LUBRICATION SYSTEM
   COOLING SYSTEM
   INLET AND EXHAUST SYSTEMS
   ELECTRICAL SYSTEM
   ADJUSTMENT AND OPERATION

5. Operate and Maintenance manual (OMM-99710-71160_05)
Format: PDF, 156 pages
Language: English

6. Wiring Diagram (EL-99719-72130S)
Format: PDF, 2 pages
Language: English
