Mitsubishi FD15K, FD18K, FD20K, FD25K, FD30K and FD35K Diesel Forklift Truck (Europe) set of Service Manuals download

Illustrated factory set of Service Manuals for Mitsubishi Diesel Forklift Trucks Models FD15K (EF16B-55001-65000), FD18K (EF16B-75001-85000), FD20K (EF18B-05001-15000), FD25K (EF18B-55001-65000), FD30K (EF14C-35001-45000) and FD35K (EF14C-55001-65000).

This manuals will assist you in determining a malfunction using a fault code, diagnosing, analyses, testing, repair, repairing engine, and troubleshooting for your diesel forklift truck.
You can use a Windows, Mac, or Android device to view this manuals. You only need to have a PDF reader installed.

Covered Models:
   FD15K (EF16B-55001-65000)
   FD18K (EF16B-75001-85000)
   FD20K (EF18B-05001-15000)
   FD25K (EF18B-55001-65000)
   FD30K (EF14C-35001-45000)
   FD35K (EF14C-55001-65000)

The manual comprises 6 documents, including the Fault Codes List, two Service Manuals, two Engine Technical Manuals, and Wiring Diagram

1. Fault Codes List (REF-18-0008M_69904)
Format: PDF, 13 pages
Language: English

2. Service Manual: Options Supplement (SMSUP-99719-91100)
Format: PDF, 44 pages
Language: English
Table of Contents:
   PLATE FIN TYPE RADIATOR KIT
   FAN SPEED UP KIT
   RADIATOR COOLANT LEVEL WARNING KIT
   TORQUE CONVERTER OIL FILTER KIT
   RADIATOR NET KIT
   COMBINATION LAMP AND TURN SIGNAL SWITCH KIT
   BACK BUZZER KIT
   WARNING LAMP KIT (Installed on top of guard)
   WARNING LAMP KIT (Installed on guard leg)
   BACK MIRROR KIT
   WORKING LAMP KIT
   DISCONNECT SWITCH KIT
   HOOK KIT
   ENCLOSED ALTERNATOR KIT (Gasoline model)
   ENCLOSED ALTERNATOR KIT (2-, 3-ton Diesel models)
   JOINT COVER KIT
   SPECIAL DUAL TIRE KIT (1-ton model)
   SPECIAL DUAL TIRE KIT (2-, 3-ton models)
   SPECIAL DUAL SOLID TIRE KIT (2-ton model)
   DOUBLE CYCLONE AIR CLEANER KIT
   DUST INDICATOR KIT
   CYCLONE MUFFLER KIT
   CATALYZER MUFFLER KIT
   DIFFUSION MUFFLER KIT
   GEAR PUMP SEAL KIT
   SUCTION FILTER KIT
   DUST PROOF BREATHER KIT

3. Service Manual (SM-99719-54120)
Format: PDF, 321 pages
Language: English
Table of Contents:
   GENERAL INFORMATION
       Vehicle Exterior, Models, Serial Number Locations, Dimensions, Technical Data
   COOLING SYSTEM
       Fan Belt Removal, Fan Belt Inspection, Fan Belt Adjustment
   ELECTRICAL SYSTEM
       Console Box, Combination Meter, Starter Switch (with Anti-restart Lock),
       Lighting Switch, Fuse Box, Spare Terminals, Battery Maintenance, Light Bulb
       Specifications, Electrical System Schematics
   POWER TRAIN
       Engine and Transmission
   POWERSHIFT TRANSMISSION
       Hydraulic Circuit, Control, Transmission Assembly, Pump Assembly, Control
       Valve, Testing Hydraulic Pressure, Adjusting Inching Pedal, Testing Clutch
       Valve, 10-m (33-ft) Start Acceleration Test
   FRONT AXLE AND REDUCTION DIFFERENTIAL
       Front Wheels, Front Axle and Reduction Differential, Tooth Contact Patterns
       and Adjustment
   REAR AXLE
       Front Wheels, Front Axle and Reduction Differential, Tooth Contact Patterns
       and Adjustment
   BRAKE SYSTEM
       Automatic Adjusting Device, Brake Pedal and Assembly, Master Cylinder,
       Wheel Brakes, Wheel Cylinders, Brake Pedal Adjustment, Bleeding Air Out of
       the Brake Fluid Line, Brake Test
   STEERING SYSTEM
       Steering System, Steering Control Valve, Tilt Steering Assembly
   HYDRAULIC SYSTEM
       Hydraulic Line, Hydraulic Tank, Hydraulic Pump, Control Valve, Lift and Tilt
       Cylinders, Flow Regulator Valve, Down Safety Valve
   MAST AND FORK
       Simplex Mast, Duplex Mast, Triplex Mast
   SERVICE DATA
       Tightening Torques for Standard Bolts and Nuts, Periodic Replacement Parts,
       Fuel and Lubricant Specifications, Recommended Brands of Lubricants, Refill
       Capacities (Approximate)
   OPTIONS
       Plate Fin Type Radiator Kit, Fan Speed Up Kit, Radiator Coolant Level, Warning
       Kit, Torque Converter Oil Filter Kit, Radiator Net Kit, Combination Lamp and Turn
       Signal Switch Kit, Back Buzzer Kit, etc.

4. Engine Technical Manual: S4S Diesel Engine (EN-99729-77120_S4S)
Format: PDF, 182 pages
Language: English
Table of Contents:
   INTRODUCTION
   GENERAL CONTENTS
   GENERAL
   SERVICE DATA
   SERVICE TOOLS
   DETERMINATION OF OVERHAUL
   DISASSEMBLY OF BASIC ENGINE
   INSPECTION AND REPAIR OF BASIC ENGINE
   REASSEMBLY OF BASIC ENGINE
   FUEL SYSTEM
   LUBRICATION SYSTEM
   COOLING SYSTEM
   INLET AND EXHAUST SYSTEMS
   ELECTRICAL SYSTEM
   ADJUSTMENT AND OPERATION

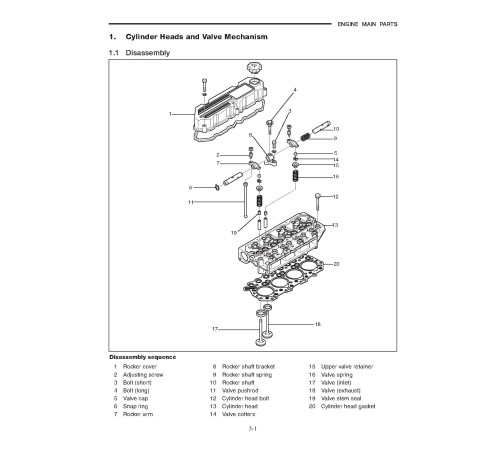

5. Engine Technical Manual: S4Q2 (EN-99719-77116_S4Q2_A06)
Format: PDF, 174 pages
Language: English
Table of Contents:
   GENERAL
      Outline
      Specifications
   GENERAL INSTRUCTIONS
      Determination of overhaul timing
      Testing compression pressure
      Tips on disassembly and reassembly
      Precautions for disassembly and reassembly
   ENGINE MAIN PARTS
      Cylinder heads and valve mechanism
      Flywheel
      Timing gears, campshaft and oil pan
      Pistons, connecting rods, crankshaft and crankcase
   INLET AND EXHAUST SYSTEM
      Description
      Disassembly, inspection and reassembly
   COOLING SYSTEM
      Description
      Water pump, fan
      Thermostat
   FUEL SYSTEM
      Description
      Fuel system bleeding
      Disassembly
      Fuel filter (paper-element cartridge type)
      Fuel injection nozzles
      Fuel injection adjustment
   LUBRICATION SYSTEM
      Description
      Oil pump
      Oil filter
      Pressure relief valve
   ELECTRICAL SYSTEM
      Starter
      Alternator
      Glow plugs
   TESTING AND ADJUSTING
      Bench test
      Idling speed and maximum speed setting inspection and adjustment
      Performance test
   TROUBLESHOOTING
      Causes of engine problems and remedies
   MAINTENANCE STANDARD
      Maintenance standards
      Tightening torques
      Thread sealants
      Maintenance schedule
   SPECIAL TOOL Special tool list


6. Wiring Diagram: Michel Cabin (EL-SEBN0001-01_MichelCabin)
Format: PDF, 4 pages
Language: English
